Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Shape: Brick

Material: Alumina Block

SiO2 Content (%): 25%--40%

Al2O3 Content (%): 50%--70%

MgO Content (%): 0

CaO Content (%): 0

Refractoriness (Degree): 1770Â°< Refractoriness< 2000Â°

CrO Content (%): 0

SiC Content (%): 0

Model Number: JM

Processing Service: Bending, Punching, Cutting, Moulding

Product name: Light Weight mullite brick

Raw material: Al2O3

Bulk density(g/cm3): <1.0

Cold Crushing Strength Mpa: â‰¥3.0

Thermal Conductivity (W/m.k)(350Â°C): 0.32~0.44

Application: Industrial Furnaces

Feature: Heat preservation and heat insulation

Certificate: ISO9001

Informação básica

Certificação: ISO9001

Model Number: JM

Condições de Pagamento e Envio

Packaging Details: 1. Carton packaging . 2. tray + plastic film + fixed band . 3. pallets: 1*1m,0.93*0.93m . 4. tray weight: 1.6~2.0ton. 5. packaging according to customer service requirements .

Supply Ability: 3000 Ton/Tons per Month

Descrição de produto

Product Description

hot sale skid rail chromium corundum brick for reheating furnace

The main mineral composition of hot sale skid rail chromium corundum brick is prun-Al2o3-cr2o3 solid solution.The secondary mineral composition is a small amount of composite spinel (or non-composite spinel), and the content of chromium oxide is 1% ~ 30% of firebrick. And in near day, high pure chrome corundum brick also make to fulfill the needs of special industries. High chromium bricks (Cr2O3≥90%) are mainly used in key parts of kilns such as coal chemical industry, chemical industry kilns, alkali-free glass fiber kilns, garbage incinerators, etc.There are two types of fused cast chrome corundum brick and sintered chrome corundum brick.

Chrome corundum brick in general refers to sintered chrome corundum brick.
α-Al2O3 was taken as the raw material, and a moderate amount of chromic oxide powder and fine powder of chrome corundum clinker were added.The content of chromic oxide in sintered chrome brick is generally lower than that of fused cast chrome corundum brick.

Moreover, the gray-pouring method can be used to prepare the gray-Al2o3 powder and chromium-oxide powder, and the grain-Al2o3 powder can be mixed uniformly, and the grout can be made by adding degumming agent and organic binder, and some chrome-corundum clinker can be added at the same time.It can be used as lining of glass kiln, screwing glass liquid flow hole cover plate brick, as backing lining of iron water pretreatment device, waste incinerator, coal water slurry pressurized gasifier,

Item	HT-GG90	HT-GG85	HT-GG60	HT-GG30	HT-GG12	HT-GG03
Cr2O3 %	≥93	≥86	≥60	≥30	≥12	≥3
Al2O3 %	—	—	≤38	≤68	≤80	≤90
Fe2O3 %	—	—	≤0.2	≤0.2	≤0.5	≤0.5
Apparent porosity %	≤17	≤17	≤14	≤16	≤18	≤16
Bulk Density g/cm3	≥4.3	≥4.2	≥3.63	≥3.53	≥3.3	≥3.25
Cold compressive strength, Mpa	≥100	≥100	≥130	≥130	≥120	≥120
Refractoriness under load ℃ (0.2MPa,0.6%)	≥1680	≥1670	≥1700	≥1700	≥1700	≥1700
Linear change rate % (1600℃×3h)	±0.2	±0.2	±0.2	±0.2	±0.2	±0.2

Feature:

1.Low levels of iron and other impurities
2.High mechanical intensity
3.High refractoriness, can contact with the flame directly, suitable for various atmosphere
4.High porosity, low volume density, low thermal conductivity
5.Good heat insulating performance and energy-efficient
6.Low creep rare at high temperature,good thermal shock stability
7.Chemical corrosion resistance
8.Long service life

hot sale skid rail chromium corundum brick for reheating furnace

Straight size:230×114×65 230×114×75 230×57×65
Split size: 230×114×32 230×114×40 230×114×25 230×114×50
Arch/Wedge size: 230×114×65/45 230×114×65/55 230×114×75/45 230×114×75/55 230×114×75/65
Tile size: 230×230×38 230×230×50 230×230×65 230×230×75
Other size: Key brick, Skew brick, Soap, Checker, Neck, Taper
Also produce corundum bricks according to customers' needs

Company Information

Our Advantage

Certifications

Product Line

Packaging & Shipping

FAQ

Q1:Are you a manufacture or trader?
A:Factory+trade(mainly factories,at the same time,we operates other related products)

Q2:Can we visit your factory?
A:Sure,welcome at any time,seeing is believing.

Q3:What's the MOQ of trial order?
A:No limit,We can offer the best suggestions and solutions according to your condition.

Q4:Which payment terms can you accept?
A:T/T,L/C,Western Union,Moneygram,Paypal are available for us.

Q5:After an order is confirmed,when to deliver?
A:15-25days after deposit.

Q6:Is your company accept customization?
A:We have own factory and excellent technical team,and we accept OEM service.

Q7:How about your company's certification?

A:ISO9001 and Test Report,also we could apply other necessary certification.

Q8:How to slove the quality problems?
A:If the products are not confirmed to customer samples or have quality problems,our compay will be responsible to make compensation for it.

Q9:Can you offers samples?
A:Of coures,samples are free but freight paid by the buyers.

Q10:What is the service life of your bricks?
A:The service life of different bricks is unlike.It also depends on your using condition and method.

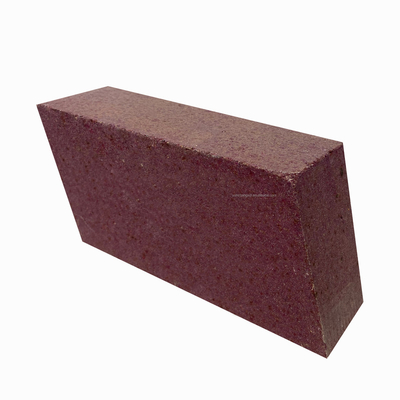

Heat Preservation And Heat Insulation High Purity Chrome Magnesite Refractory Bricks 65 Magnesite Chromite Brick For Glass Furnaces
